| 图例 |
型号 |
说明 | 开孔尺寸 | 尺寸图 |
  |

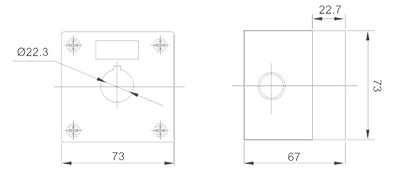

HBD-1A-WN HBD-1A-YN |
一孔按钮盒 |
Ø22mm |
|
  |

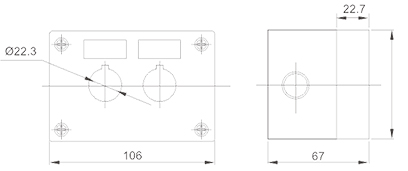

HBD-2A-WN HBD-2A-YN |
二孔按钮盒 |
Ø22mm |
|
  |

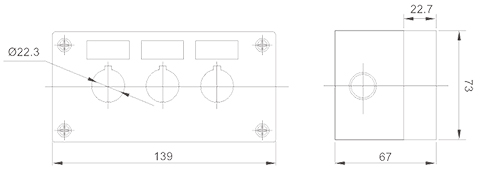

HBD-3A-WN HBD-3A-YN |
三孔按钮盒 |
Ø22mm |
 |
  |

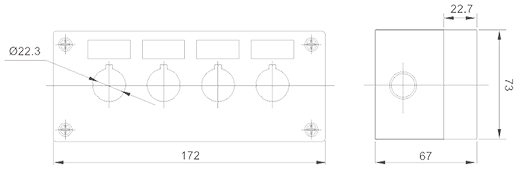

HBD-4A-WN HBD-4A-YN |
四孔按钮盒 |
Ø22mm |
 |
  |

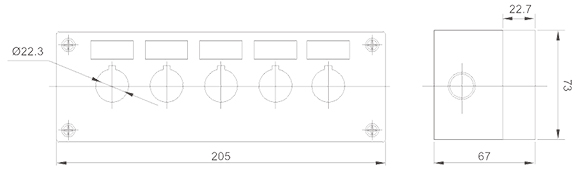

HBD-5A-WN HBD-5A-YN |
五孔按钮盒 |
Ø22mm |
 |
  |

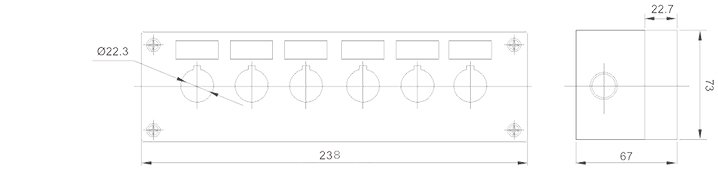

HBD-6A-WN HBD-6A-YN |
六孔按钮盒 |
Ø22mm |
 |
